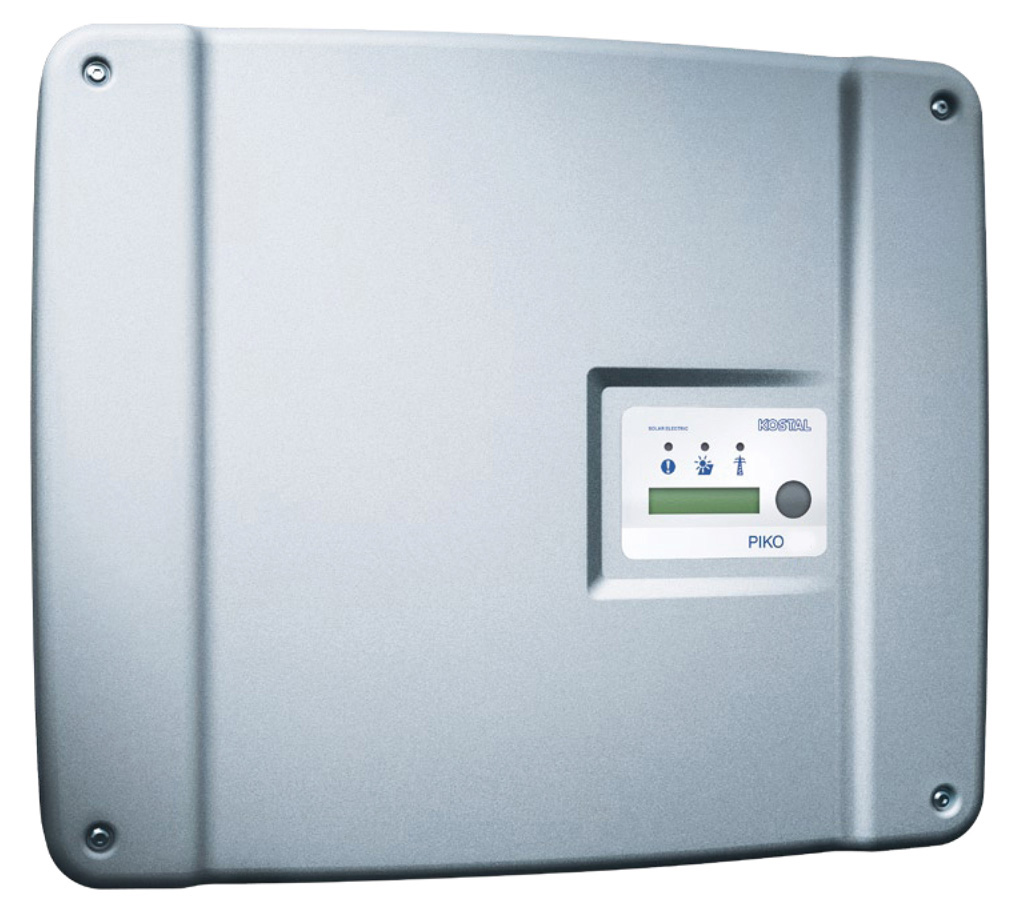

Kostal PIKO 10.1 trofazni invert. 3xMPPT

Inverter – PIKO 10.1

  • Three-phase feed-in; Transformerless topology
  • Extension of the input current range possible
  • With or without arc detection
  • Three independent MPP trackers (PIKO 10.1)
  • Integrated circuit contact for self-consumption control
  • Integrated electronic DC circuit breaker
  • Integrated data logger and web server for system monitoring
  • Various communication interfaces included as standard:
    Ethernet, RS485, S0, 4 x analogue inputs
  • Graphic display with 3-button control

Technical data – PIKO 10.1

Input side (DC)
Number of DC inputs / number of MPP trackers 3 / 3
Max. input voltage (open circuit voltage) UDCmax 950 V
Min. DC input voltage UDCmin 180 V
Start-up DC input voltage UDCstart 180 V
Rated DC input voltage UDC,r 680 V
Max. MPP voltage UMPPmax 850 V
Min. MPP voltage in single-tracker operation UMPPmin not recommended
Min. MPP voltage in two-tracker or parallel operation UMPPmin 420 V
Max. DC input current IDCmax 12,5 A
Max. DC input current with parallel connection IDCmax,p 25 A
Output side (AC)
Number of feed-in phases 3
AC grid voltage UAC,r 3/N/PE, AC, 230 V / 400 V
Max. AC output current IAcmax 14,5 A
Short-circuit current Isc 21 A
Rated AC output (cos? = 1) PAC,r 10.000 W
Max. AC apparent power (cos?, adj) SAC 10.000 VA
Power factor cos?ACr 0,9 capacitive … 1 … 0,9 inductive
Max. efficiency ?max 97,0 %
European-standard efficiency ?EU 96,4 %
Rated frequency fr 50 Hz
Efficiency rate characteristic curves


21.900,00 kn
